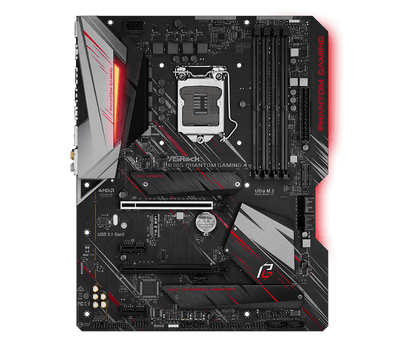

ASRock B365 phantom gaming 4 Motherboard
ASRock B365 phantom gaming 4 Motherboard
Description
Description
- Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
- Supports DDR4 2666 MHz
- 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- AMD Quad CrossFireX™
- Graphics Output Options: HDMI, Display Port
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Supports DTS Connect
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 Gen2 (Rear Type A+C)
- 6 USB 3.1 Gen1 (2 Front, 4 Rear)
- Intel® Gigabit LAN
- ASRock Polychrome SYNC
-
Gaming ArmorMemory
- 15μ Gold Contact in DIMM Slots
VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
- Intel® LAN
Cooling
- XXL Aluminum Alloy Heatsink -
Unique FeatureASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- Premium 50A Power Choke
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Shaped PCB Design
- Matte Black PCB
- High Density Glass Fabric PCB
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop -
CPU- Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
- Supports CPU up to 95W
- Digi Power design
- 8 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology -
Chipset- Intel® B365
-
Memory- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. -
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, GT, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment -
Graphics- Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
- DirectX 12
- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
- Dual graphics outputs: HDMI 1.4 and DisplayPort 1.2
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. -
Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Gold Audio Jacks
- Supports DTS Connect -
LAN- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE -
Slots- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
- 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
- 15μ Gold Contact in VGA PCIe Slot (PCIE2)
*If PCIE2 or PCIE4 is occupied, PCIE3 will downgrade to x2 mode.
Supports NVMe SSD as boot disks -
Storage- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
**Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
