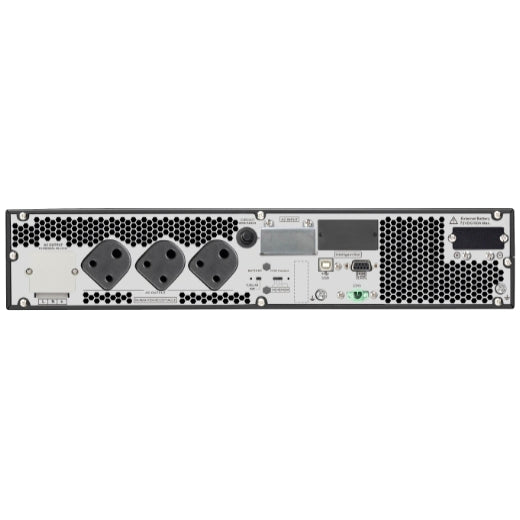

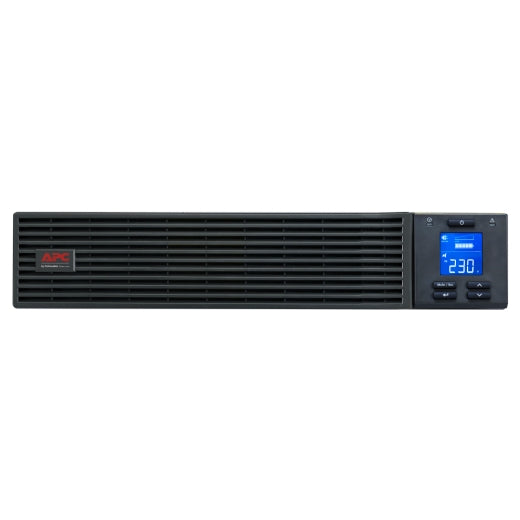

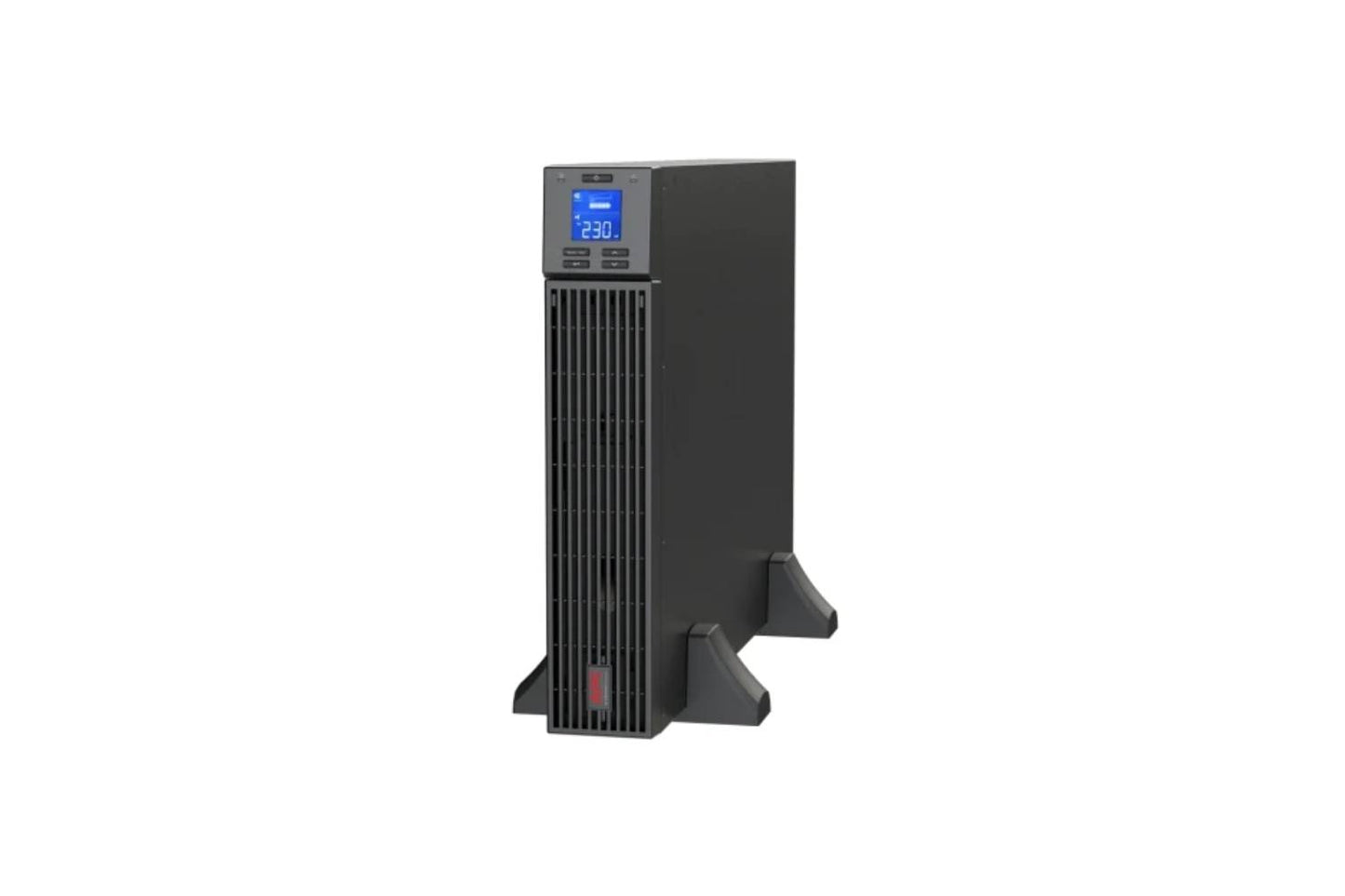

APC Easy UPS On-Line SRV 2000VA RT 230V India - No Battery SRV2KUXI-IN

APC Easy UPS On-Line SRV 2000VA RT 230V India - No Battery SRV2KUXI-IN

Regular price ₹ 39,000.00
Regular price ₹ 54,000.00 Sale price ₹ 39,000.00
Sale Sold out
Tax included.

Description

  • Includes: Basic UPS signalling RS-232 cable, CD with software, DC cable, Rack mounting brackets, Stabilization/wall mounting feet, USB cable, User manual

Detailed Broacher

Technical Specifications

Output

Max Configurable Power (Watts)
1.6kWatts / 2.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
88.0 %
Output Voltage Distortion
3 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220 V, 240 V
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)

Input

Input frequency
40 - 70 Hz Auto sensing
Input voltage range for main operations
110 - 280 Half load, 160 - 280 Full loadV
Efficiency at Full Load
88.0 %
Other Input Voltages
220 V, 240 V

Batteries & Runtime

Battery type
External battery system
Nominal Battery Voltage
72 V
Battery Charge Power (Watts)
700 Watts

Communications & Management

Interface Port(s)
DB-9 RS-232, Intelligent Smart Slot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes

Surge Protection and Filtering

Surge energy rating
600Joules

Physical

Maximum Height
86MM, 8.6CM
Maximum Width
438MM, 43.8CM
Maximum Depth
462MM, 46.2CM
Net Weight
9.8KG
Shipping weight
13.9KG
Shipping Height
240MM, 24.0CM
Shipping Width
545MM, 54.5CM
Shipping Depth
700MM, 70.0CM
Color
Black

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (Non-condensing) %
Operating Elevation
0 - 3000meters
Storage Temperature
-20 - 60 °C
Storage Relative Humidity
0 - 95 (Non-condensing) %
Storage Elevation
0 - 15000meters
Audible noise at 1 meter from surface of unit
50.0dBA
Online thermal dissipation
745.0BTU/hr
Protection Class
IP20

Conformance

Approvals
BIS
Standard warranty
2 years repair or replace
