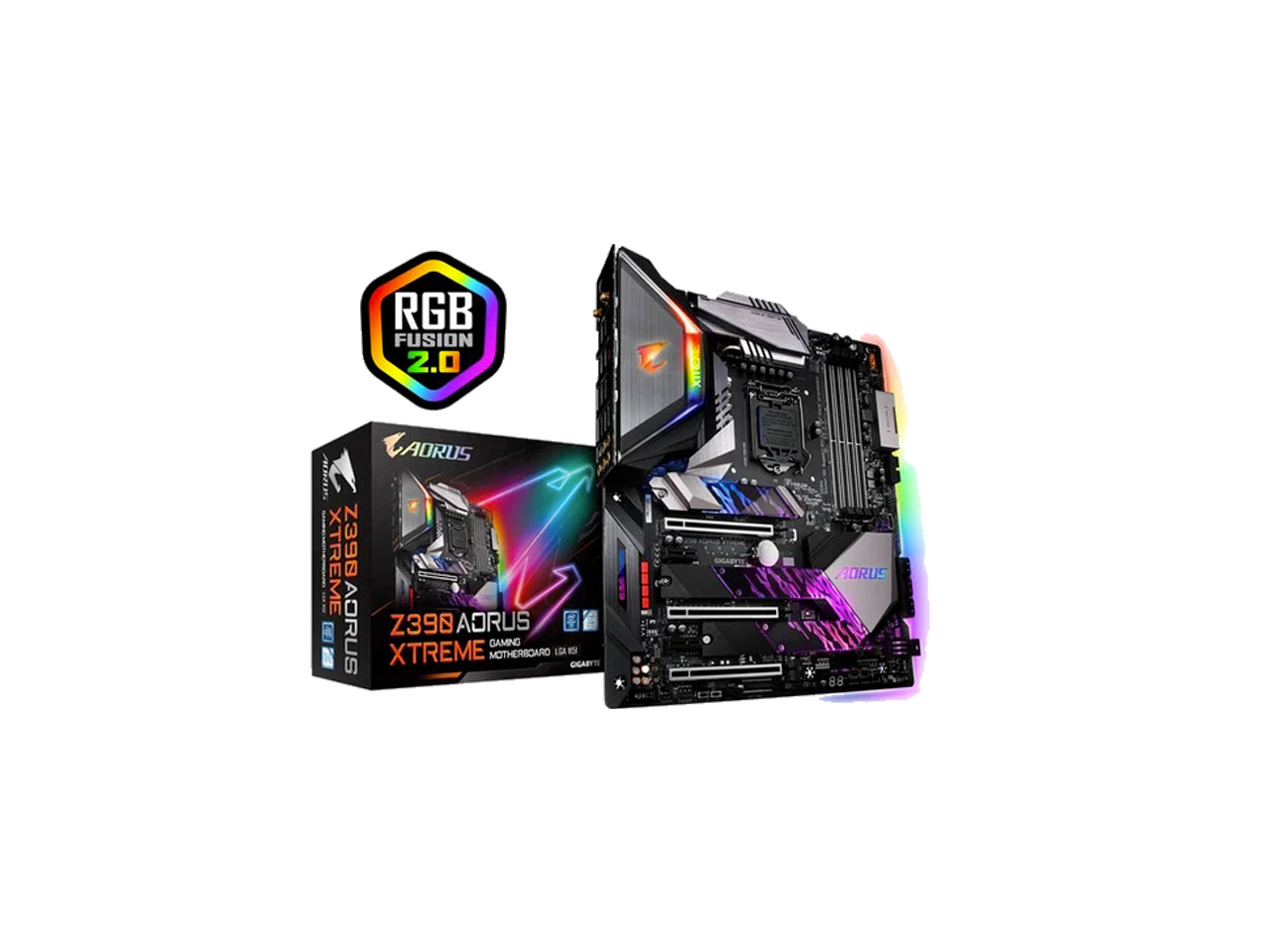

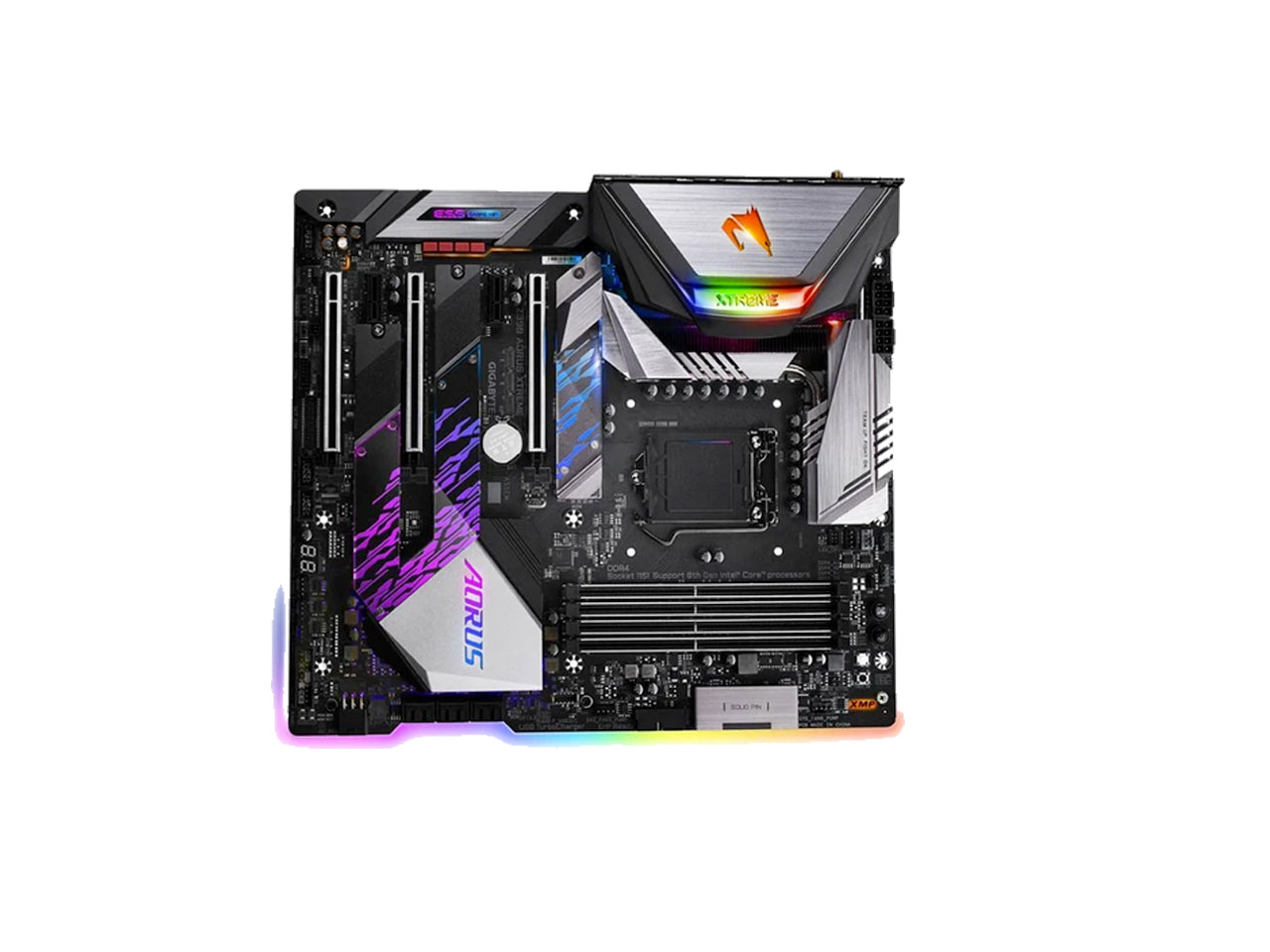

Aorus Z390 AORUS XTREME(rev 1.0) Motherboard

Aorus Z390 AORUS XTREME(rev 1.0) Motherboard

₹ 50,149.00
₹ 50,149.00
Sale Sold out
Tax included.

Description

Intel Z390 Gaming motherboard with 16 Phases IR Digital VRM, Fins-Array Heatsink, RGB Fusion 2.0, 802.11ac Wireless, Intel Thunderbolt 3, ESS SABRE 9018K2M DAC, AQUANTIA®10GbE LAN, RGB FAN COMMANDER, OC Touch

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • 16 Phases IR Digital VRM Solution with PowIRstage
  • Cutting-edge Thermal Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate
  • Onboard Intel CNVI 802.11ac 2x2 Wave 2 Wi-Fi with All new AORUS Antenna
  • 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720 and OPA1622 OP-AMP, WIMA audio capacitors
  • AQUANTIA® 10GbE BASE-T LAN and Intel® Gigabit LAN with cFosSpeed
  • Intel® Thunderbolt™ 3 onboard
  • Exclusive RGB FAN COMMANDER and OC Touch for professional casemodders and overclockers
  • USB TurboCharger for mobile device fast charge support
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show design, support Addressable LED & RGB LED strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Front USB 3.1 Gen 2 Type-C™ Header
  • Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface with Triple Thermal Guards
CPU
  1. Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
  1. Intel® Z390 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
    ** Please note that the support for system total memory size depends on the CPU installed.
  2. Dual channel memory architecture
  3. Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:
  1. 2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 1.2 version.
Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU
Audio
  1. Realtek® ALC1220-VB codec
  2. ESS ES9018K2M DAC and TI OPA1622 operational amplifiers
    * The front panel line out jack supports DSD audio.
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel
  5. Support for S/PDIF Out
LAN
  1. 1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
  2. 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)
Wireless Communication module
  1. Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5
  3. Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector.
    (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
  4. 2 x PCI Express x1 slots
    (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
  5. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Storage Interface Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M)
  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
  3. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)
  4. 6 x SATA 6Gb/s connectors
  5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-10 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors.
Intel® Optane™ Memory Ready
Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
USB Chipset+Intel® Thunderbolt™ 3 Controller:
  1. 2 x USB Type-C™ ports on the back panel, with USB 3.1 Gen 2 support
Chipset:
  1. 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
  2. 4 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
  3. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
  1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x OC PEG power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 4 x system fan headers
  7. 2 x system fan/water cooling pump headers
  8. 2 x addressable LED strip headers
  9. 2 x addressable LED strip power select jumpers
  10. 2 x RGB LED strip headers
  11. 6 x SATA 6Gb/s connectors
  12. 3 x M.2 Socket 3 connectors
  13. 1 x front panel header
  14. 1 x front panel audio header
  15. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  16. 1 x USB 3.1 Gen 1 header
  17. 2 x USB 2.0/1.1 headers
  18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  19. 1 x GC-OC Touch add-in card connector
  20. 1 x Clear CMOS jumper
  21. 2 x temperature sensor headers
  22. 1 x power button
  23. 1 x reset button
  24. 1 x Clear CMOS button
  25. 1 x OC button
  26. 2 x BIOS switches

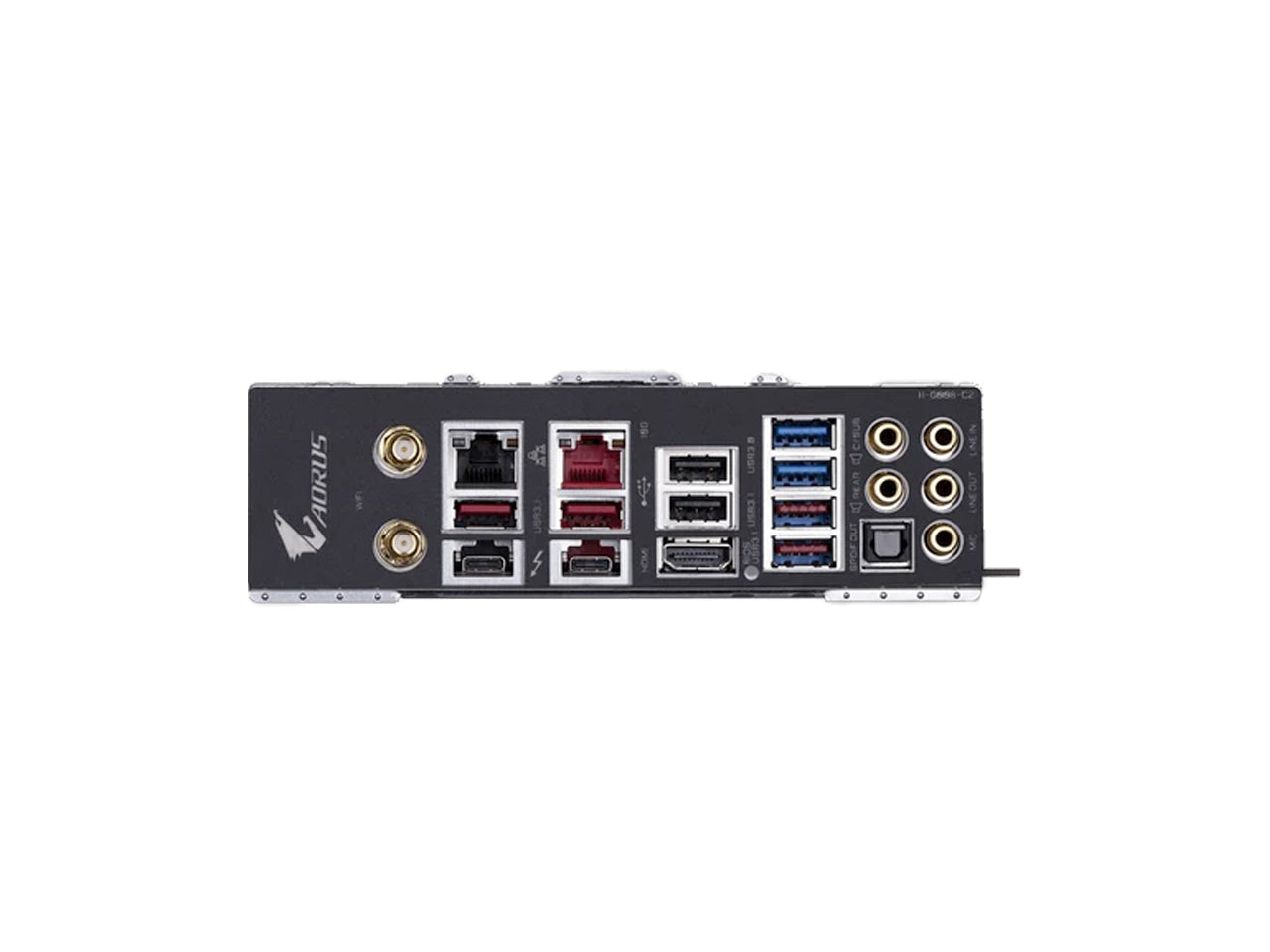

Back Panel Connectors
  1. 2 x SMA antenna connectors (2T2R)
  2. 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.1 Gen 2 support)
  3. 4 x USB 3.1 Gen 2 Type-A ports (red)
  4. 2 x USB 3.1 Gen 1 ports
  5. 2 x USB 2.0/1.1 ports
  6. 1 x HDMI port
  7. 2 x RJ-45 ports
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. Support for Q-Flash Plus
    * The USB flash drive used must be a USB 2.0 flash drive.
  5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    Platform Power Management
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    Smart Survey
    System Information Viewer
    USB Blocker
    USB TurboCharger
    2. Smart Fan (for AORUS RGB FAN COMMANDER )
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. E-ATX Form Factor; 30.5cm x 27.1cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
