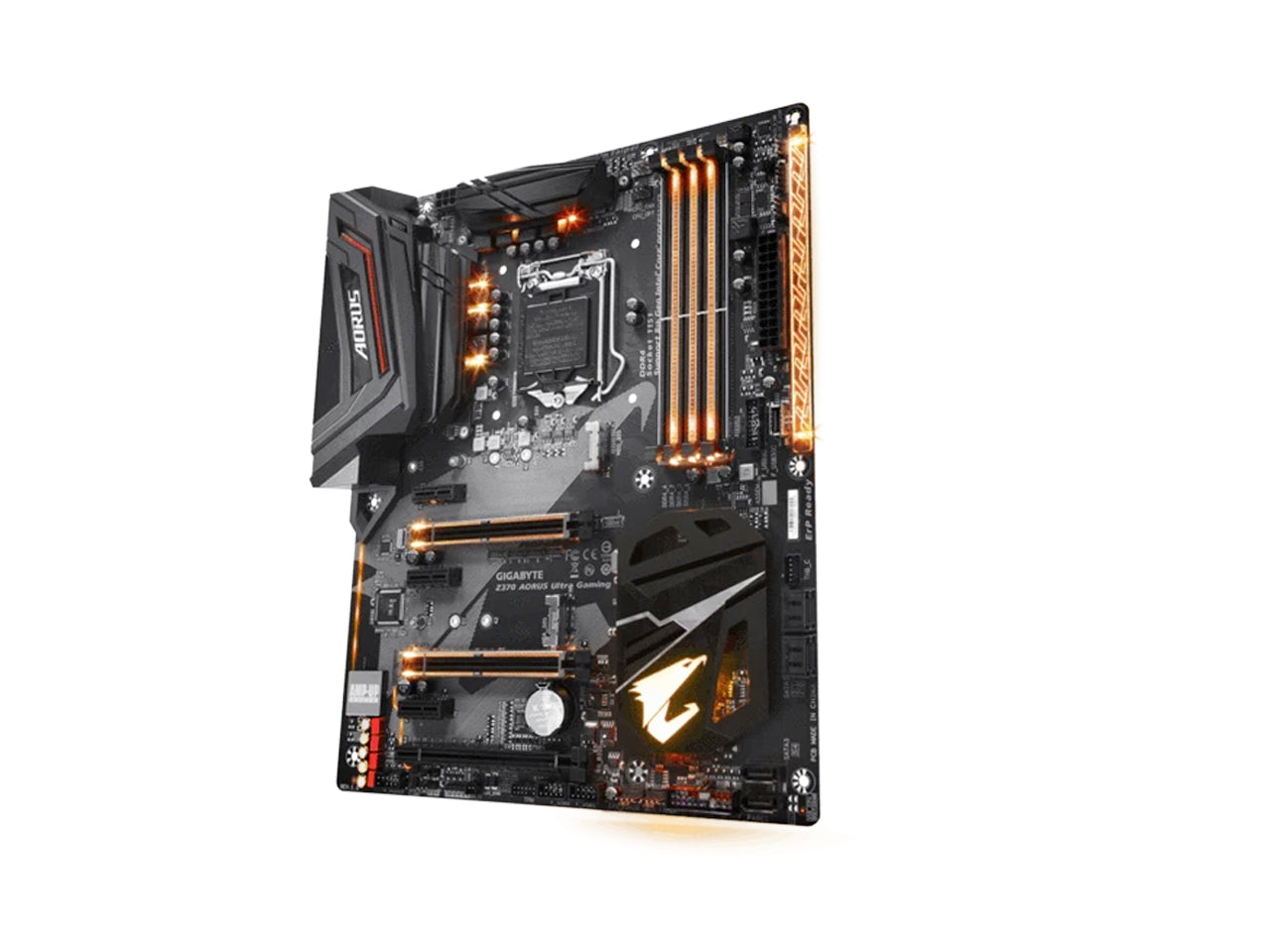

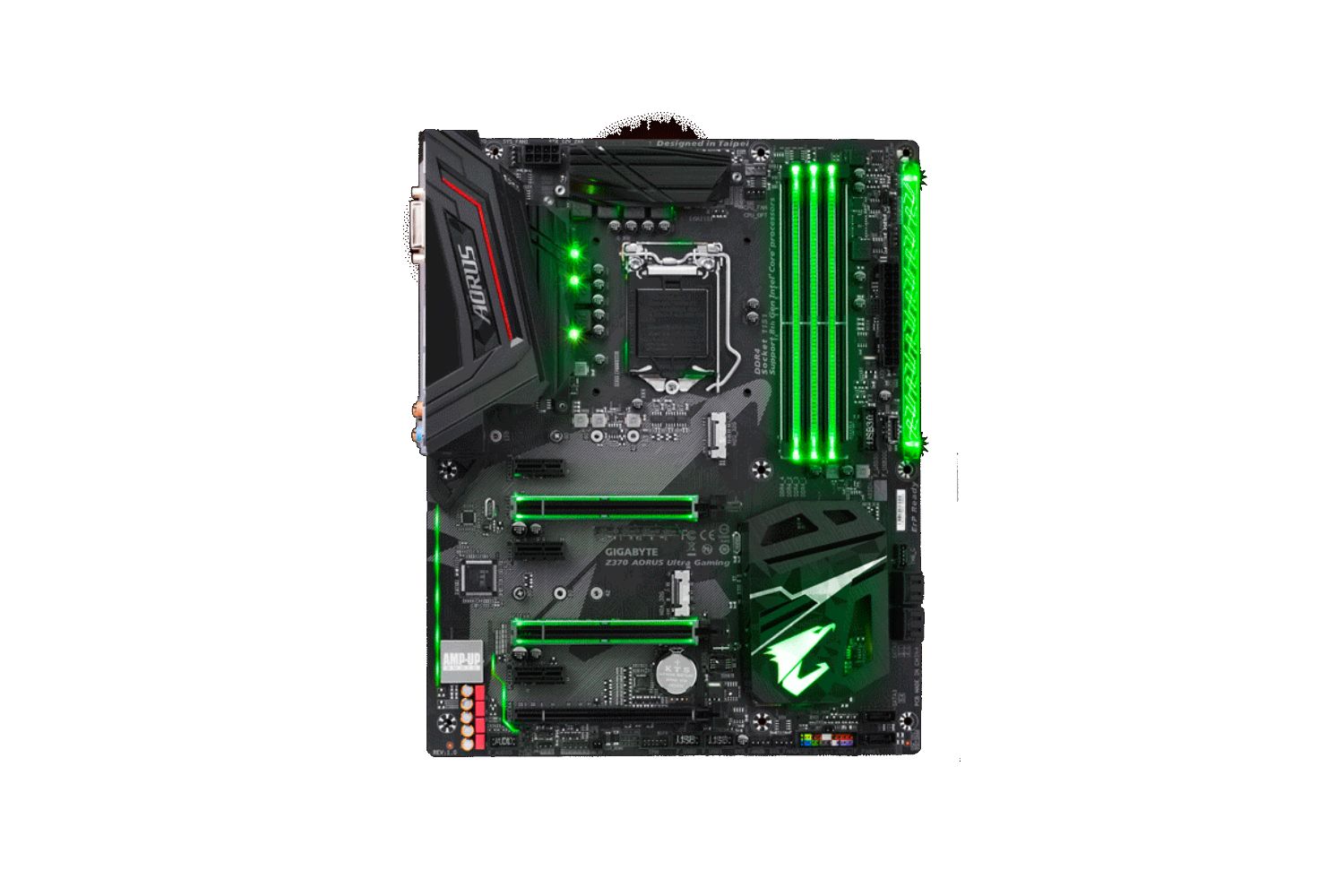

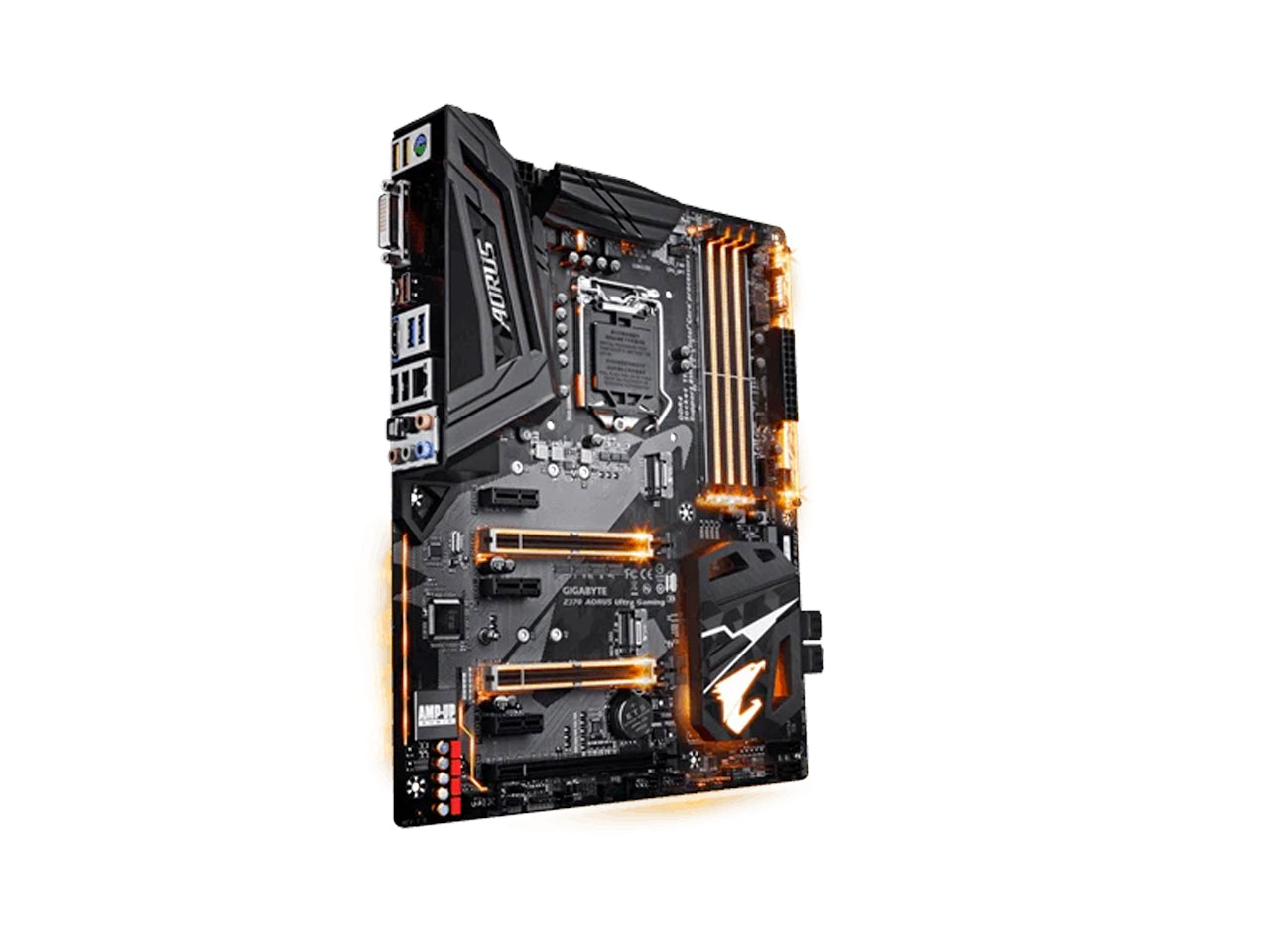

Aorus Z370 Ultra Gaming Motherboard

• Supports 8^th Gen Intel^® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel^® Optane™ Memory Ready
• ASMedia 3142 USB 3.1 Gen 2 with USB Type-C™ and Type-A
• Front USB 3.1 Gen 1 Type-C™ Header
• Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
• ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
• Intel GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software
• RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips
• Swappable Overlay for Accent LED
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
• USB DAC-UP 2 with Adjustable Voltage
• Anti-Sulfur Resistors Design
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
• Lightning-Fast Intel^® Thunderbolt™ 3 AIC Support
• APP Center Including EasyTune™ and Cloud Station™ Utilities

CPU
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Intel® Z370 Express Chipset

• Audio
  1. Realtek® ALC1220 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
     * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
     * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 or PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
  4. 3 x PCI Express x1 slots
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
• Storage Interface
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_32G)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_32G)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

  Intel® Optane™ Memory Ready
• USB
  Chipset+ASMedia® USB 3.1 Gen 2 Controller:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
  2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

  Chipset:

  1. 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
  2. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 2 x digital LED strip headers
  8. 2 x digital LED strip power select jumpers
  9. 2 x RGB (RGBW) LED strip headers
  10. 6 x SATA 6Gb/s connectors
  11. 2 x M.2 Socket 3 connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x S/PDIF Out header
  15. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
  16. 1 x USB 3.1 Gen 1 header
  17. 2 x USB 2.0/1.1 headers
  18. 1 x Thunderbolt™ add-in card connector
  19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  20. 1 x Clear CMOS jumper

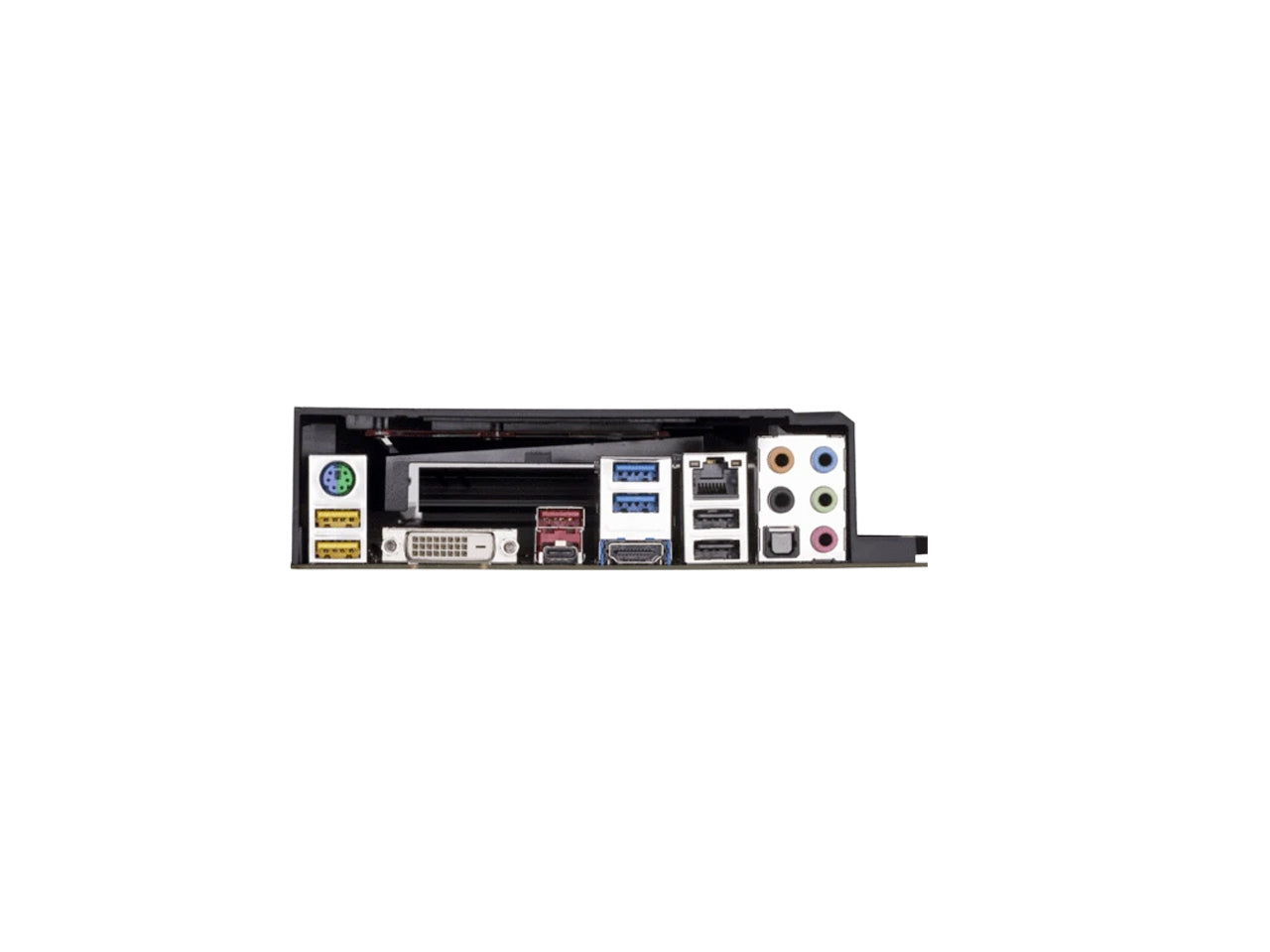

• Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x HDMI port
  4. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  5. 1 x USB 3.1 Gen 2 Type-A port (red)
  6. 4 x USB 3.1 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
• I/O Controller
  1. iTE® Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @BIOS
     AutoGreen
     BIOS Setup
     Color Temperature
     Cloud Station
     EasyTune
     Easy RAID
     Fast Boot
     Game Boost
     ON/OFF Charge
     Platform Power Management
     RGB Fusion
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     Smart HUD
     System Information Viewer
     USB Blocker
     USB DAC-UP 2
     V-Tuner
  2. Support for Q-Flash
  3. Support for Xpress Install
• Bundle Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
• Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
