AORUS X570 I PRO WIFI (rev. 1.0) Motherboard-Aorus-computerspace
AORUS X570 I PRO WIFI (rev. 1.0) Motherboard-Aorus-computerspace
AORUS X570 I PRO WIFI (rev. 1.0) Motherboard-Aorus-computerspace
Rs. 0.00 Regular price Rs. 21,479.00

Price included with Tax, no additional charges.

Out of Stock

Click here to be notified by email when AORUS X570 I PRO WIFI (rev. 1.0) Motherboard becomes available.

EMI available on credit card.
Cardless EMI Available by Zest Money with all order over 3000.00, ZestMoney: 0% Interest available Cardless EMI Available by Zest Money.
Aorus

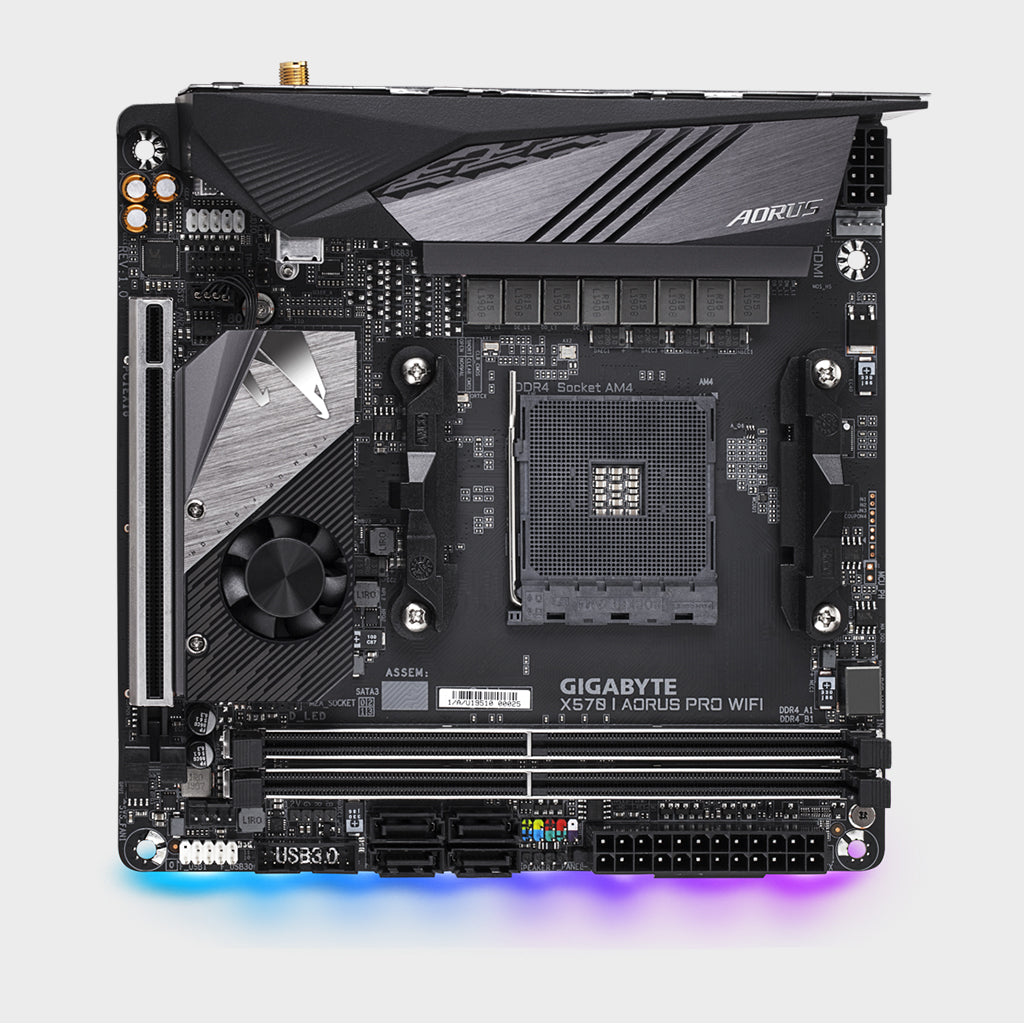

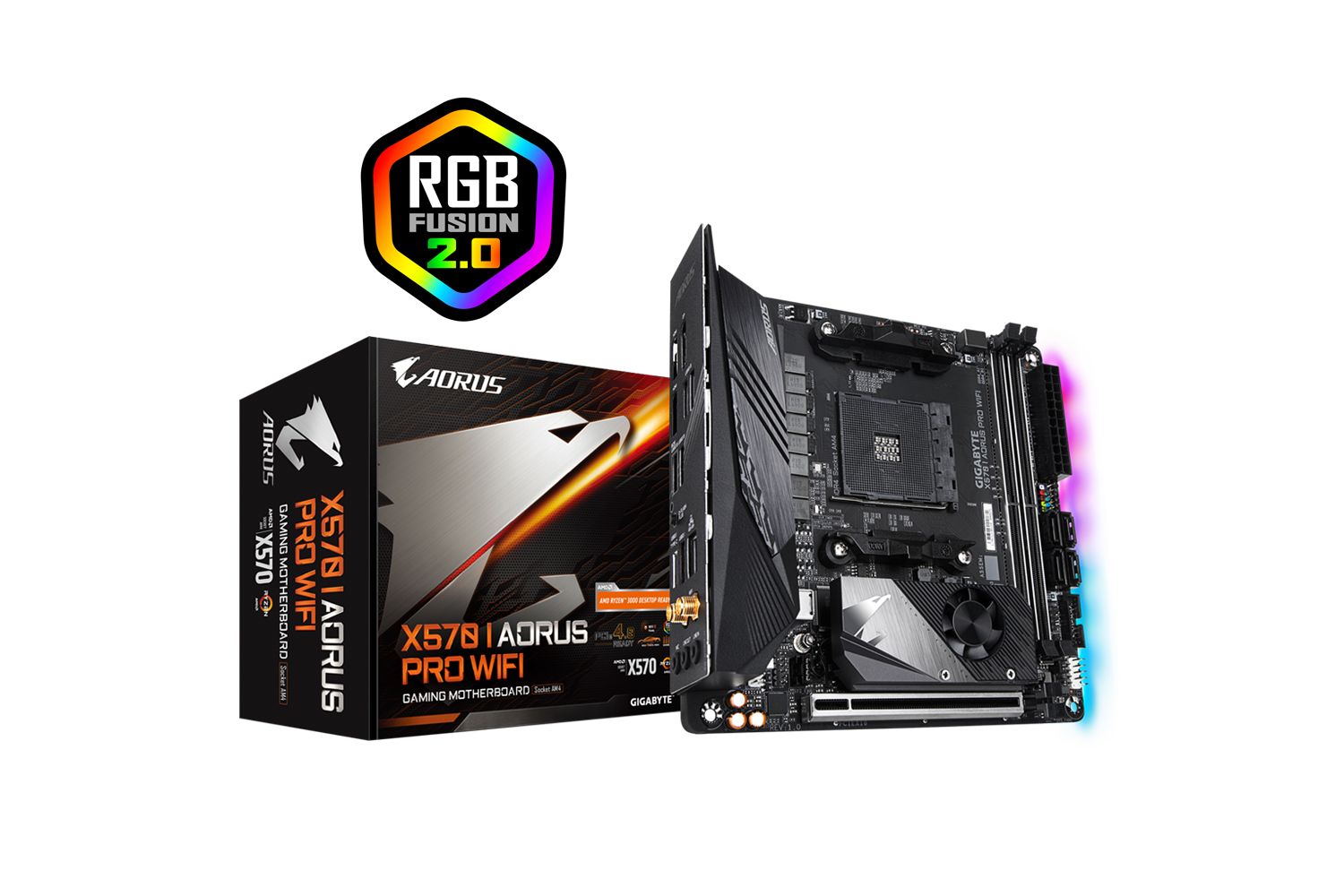

AORUS X570 I PRO WIFI (rev. 1.0) Motherboard

AMD X570 AORUS Motherboard with Direct 8 Phases IR Digital VRM, Advanced Thermal Design with Extended & Multi-Layered Heatsink, Dual PCIe 4.0 M.2, M.2 Thermal Guard, Intel® WiFi 6 802.11ax, Intel GbE LAN with cFosSpeed, USB 3.1 Gen2 Type-C, RGB Fusion 2.0
  • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
  • Dual Channel ECC/ Non-ECC...

SKU:X570 I PRO WIFI

AMD X570 AORUS Motherboard with Direct 8 Phases IR Digital VRM, Advanced Thermal Design with Extended & Multi-Layered Heatsink, Dual PCIe 4.0 M.2, M.2 Thermal Guard, Intel® WiFi 6 802.11ax, Intel GbE LAN with cFosSpeed, USB 3.1 Gen2 Type-C, RGB Fusion 2.0
  • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 8 Phases IR Digital VRM Solution with PowIRstage
  • Advanced Thermal Design with Extended & Multi-Layered Heatsink
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with one Thermal Guard
  • Intel® WiFi 6 802.11ax 2T2R & BT 5
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with Nichicon Audio Capacitors
  • Intel® GbE LAN with cFosSpeed Internet
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Rear USB 3.1 Gen2 Type-C™ Header & HDMI 2.0 support
  • Integrated Base Plate & I/O Shield Armor
  • Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card
CPU
  1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
(Please refer "CPU Support List" for more information.)
Chipset
  1. AMD X570
Memory
  1. 3rd Generation AMD Ryzen™ processors:
    Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
  2. 2 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB

* For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
Audio
  1. Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
  1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.0
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots Integrated in the CPU (PCIEX16):
  1. 3rd Generation AMD Ryzen™ processors:
    1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  2. 2nd Generation AMD Ryzen™ processors:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
  3. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
Integrated in the Chipset:
  1. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Storage Interface Integrated in the CPU (M2A_SOCKET):
  1. 3rd Generation AMD Ryzen™ processors:
    1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 4.0 x4/x2 SSD support)
  2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET):
  1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe* x4/x2 SSD support)
    * For 3rd Generation AMD Ryzen™ processors only.
  2. 4 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, and RAID 10
USB Integrated in the CPU:
  1. 4 x USB 3.2 Gen 1 ports on the back panel
Integrated in the Chipset:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  4. 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 4 x SATA 6Gb/s connectors
  8. 2 x M.2 Socket 3 connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x speaker header
  12. 1 x USB 3.2 Gen 1 header
  13. 1 x USB 2.0/1.1 header
  14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  15. 1 x Clear CMOS jumper

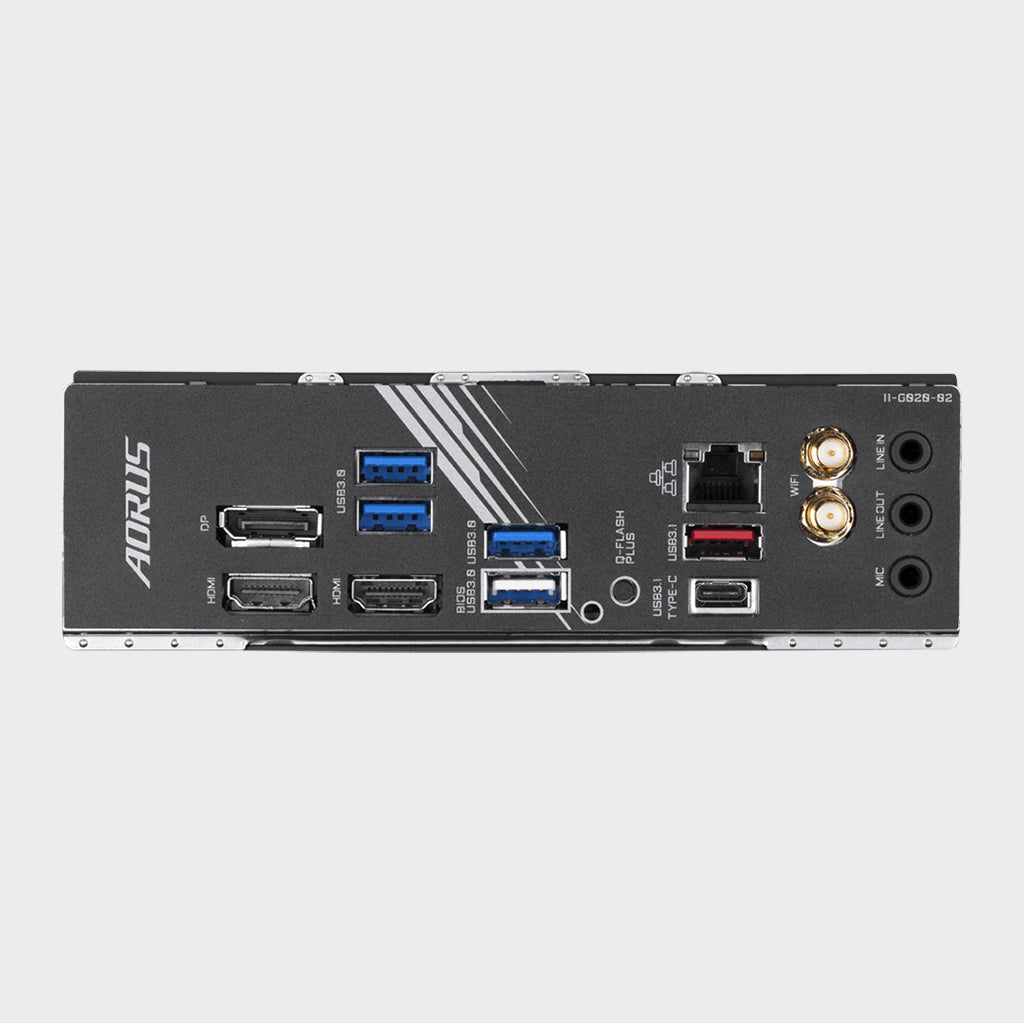

Back Panel Connectors
  1. 1 x DisplayPort
  2. 2 x HDMI ports
  3. 1 x USB 3.2 Gen 2 Type-A port (red)
  4. 4 x USB 3.2 Gen 1 ports
  5. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  6. 1 x Q-Flash Plus button
  7. 1 x RJ-45 port
  8. 2 x SMA antenna connectors (2T2R)
  9. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart Survey
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
