AORUS X570 Elite WiFi Motherboard

AORUS X570 Elite WiFi Motherboard

₹ 20,394.00
₹ 20,394.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Description


  • CPU : AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
    (Please refer "CPU Support List" for more information.)
  • Chipset : AMD X570
  • Memory : 3rd Generation AMD Ryzen™ processors:
    1. Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    2. 2nd Generation AMD Ryzen™ processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
      Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
      * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
    Maximum shared memory of 16 GB

    Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
  • Audio
    1. Realtek® ALC1200 codec
    2. High Definition Audio
    3. 2/4/5.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Wireless Communication module
    1. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 4.2
    3. Support for 11ac wireless standard and up to 433 Mbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    Integrated in the CPU (PCIEX16):
    · 3rd Generation AMD Ryzen™ processors:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    · 2nd Generation AMD Ryzen™ processors:
    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
    Integrated in the Chipset (PCIEX4/PCIEX1):
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
      * For 3rd Generation AMD Ryzen™ processors only.
    2. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
      * For 3rd Generation AMD Ryzen™ processors only.
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
  • Storage Interface
    Integrated in the CPU (M2A_SOCKET):
    · 3rd Generation AMD Ryzen™ processors:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
    · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
    Integrated in the Chipset (M2B_SOCKET):
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)
      * For 3rd Generation AMD Ryzen™ processors only.
    2. 6 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
  • USB
    Integrated in the CPU:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Integrated in the Chipset:
    1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
    2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    Chipset+2 USB 2.0 Hubs:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 2 x system fan headers
    6. 2 x addressable LED strip headers
    7. 2 x RGB LED strip headers
    8. 1 x CPU cooler LED strip/RGB LED strip header
    9. 2 x M.2 Socket 3 connectors
    10. 6 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    14. 2 x USB 3.2 Gen 1 headers
    15. 2 x USB 2.0/1.1 headers
    16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    17. 1 x Clear CMOS jumper
    18. 1 x Q-Flash Plus button

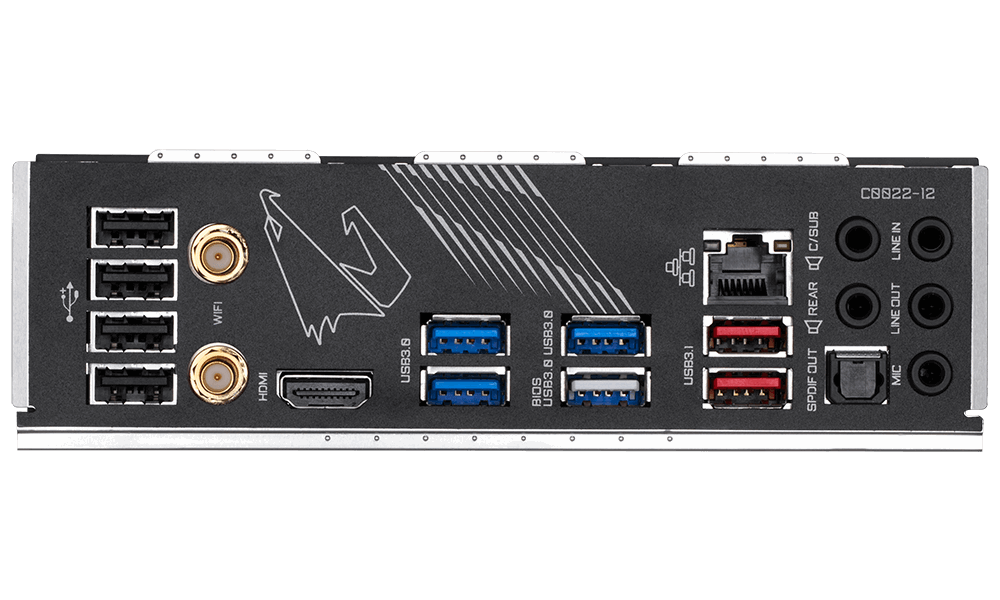

  • Back Panel Connectors
    1. 4 x USB 2.0/1.1 ports
    2. 2 x SMA antenna connectors (1T1R)
    3. 1 x HDMI port
    4. 4 x USB 3.2 Gen 1 ports
    5. 2 x USB 3.2 Gen 2 Type-A ports (red)
    6. 1 x RJ-45 port
    7. 1 x optical S/PDIF Out connector
    8. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Bundle Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
