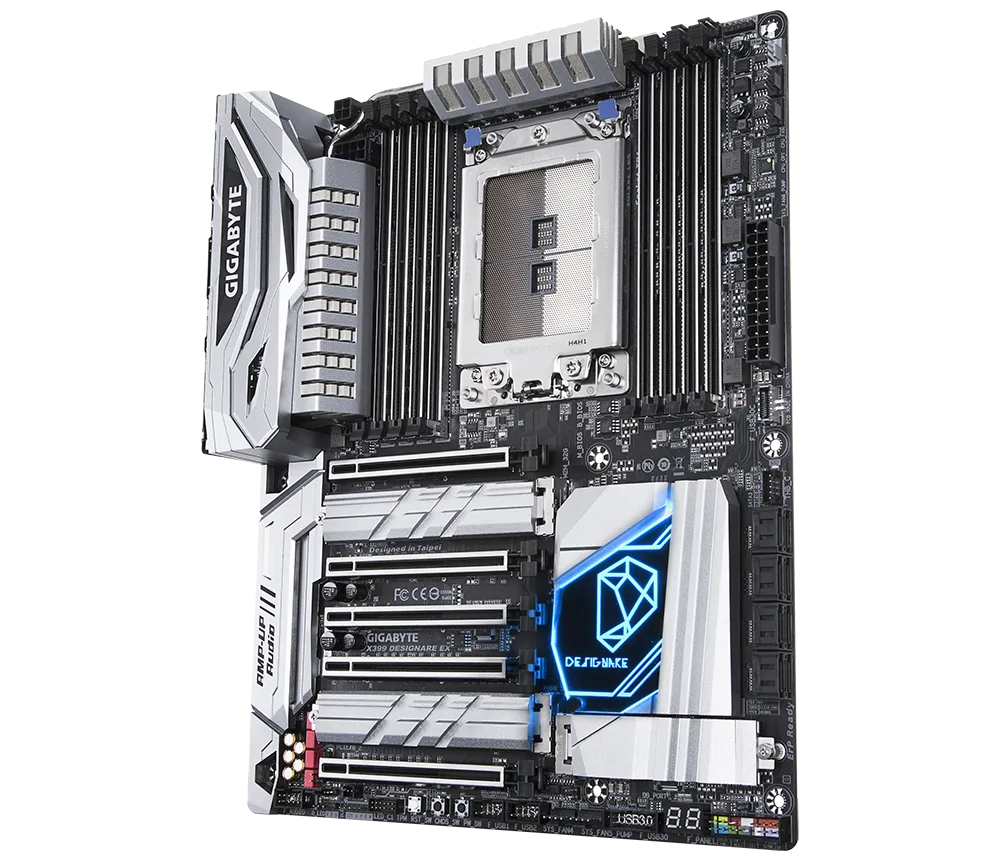

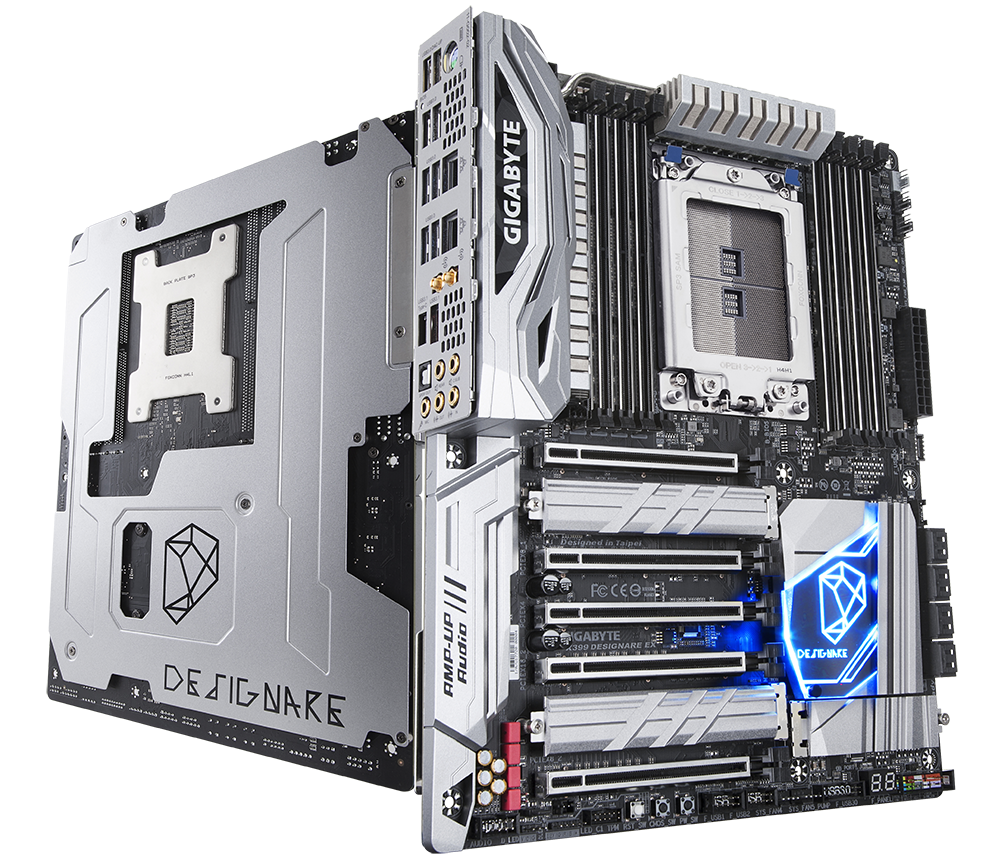

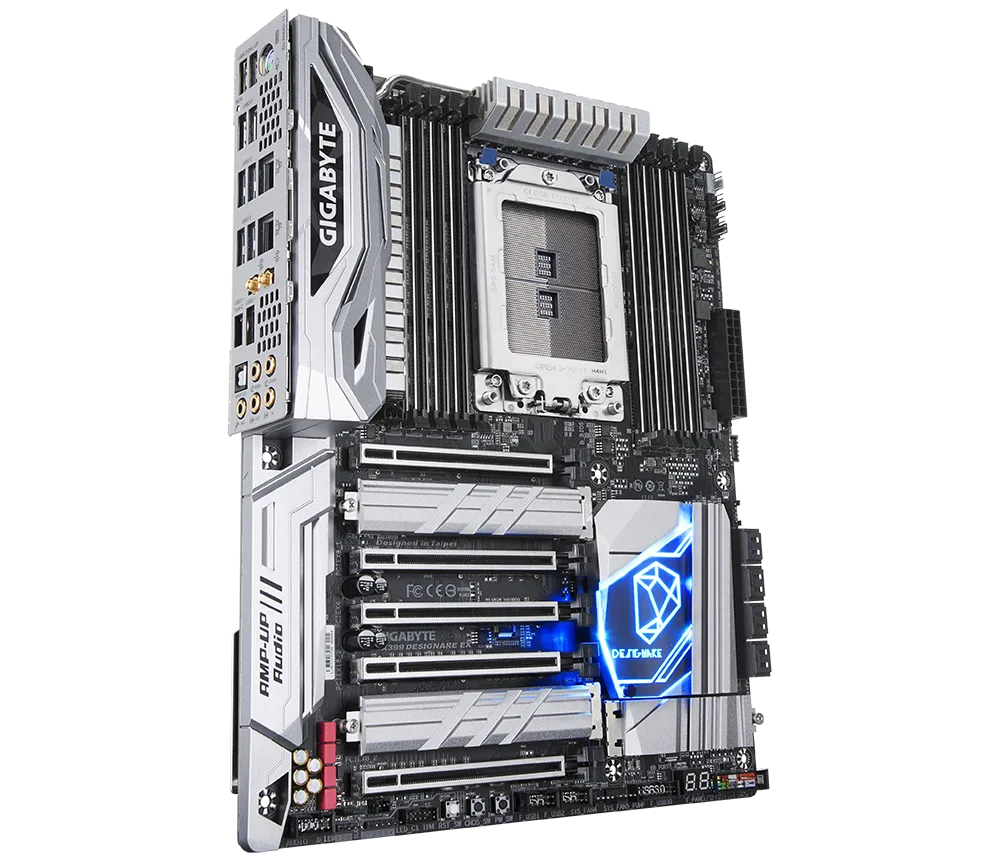

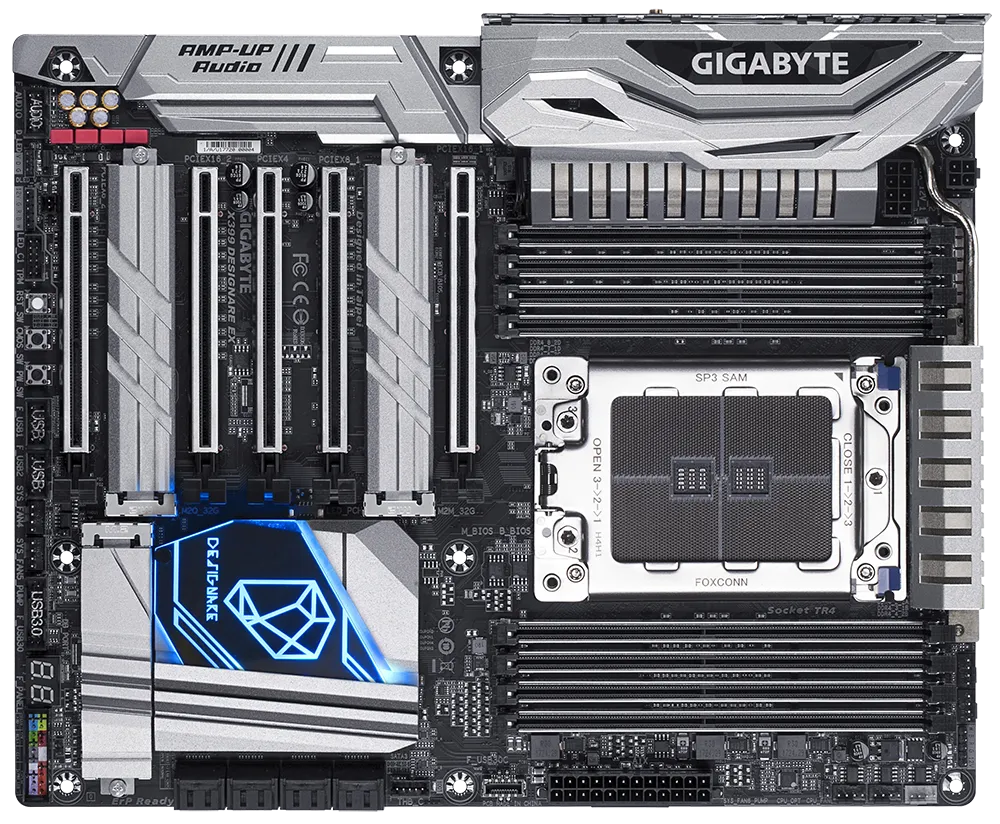

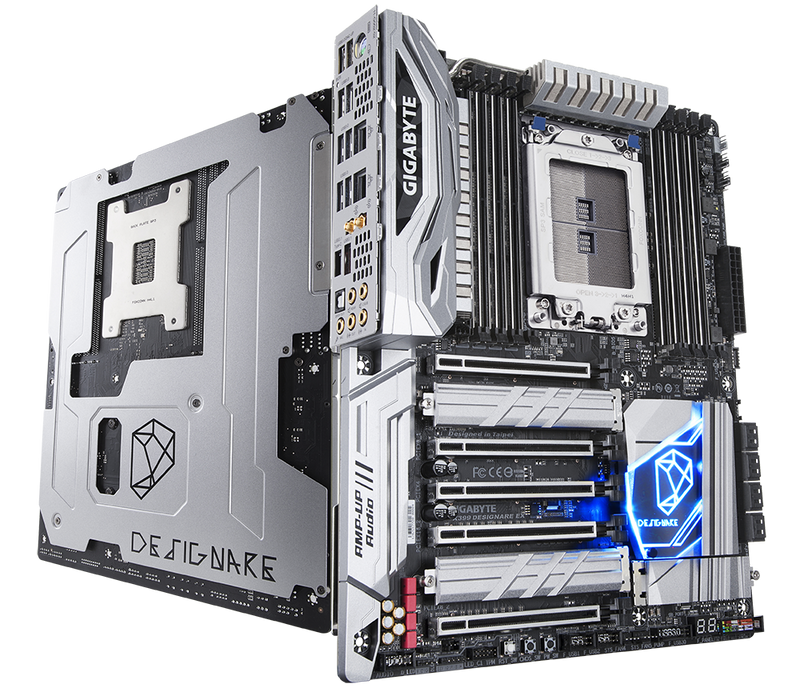

AMD X399 DESIGNARE EX Ultra Durable motherboard

Name: AMD X399 DESIGNARE EX Ultra Durable motherboard
Brand: GIGABYTE
SKU: X399 DESIGNARE EX
Price: 49640.0 INR
Availability: OutOfStock

AMD X399 DESIGNARE EX Ultra Durable motherboard

₹ 49,640.00

Sale Sold out

Tax included.

Product variants

Quantity

Description

AMD X399 Ultra Durable motherboard with Dual Intel GbE LAN, Triple M.2 with Thermal Guard, 120dB SNR ALC1220, Front & Rear USB 3.1 Type-C, RGB FUSION 2.0, Intel Dual Band 802.11ac WiFi+BT4.2, Base Plated & I/O Shield Armor

Supports AMD Ryzen™ Threadripper™ Processors
Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs, 3600MHz+(OC)
Fast Front and Rear USB 3.1 Type-C™ Interface
4-Way Graphics Support with Dual Armor and Ultra Durable™ Design
Server-Class Digital Power Design & Gold Plated Solid Power Connectors
Dual Intel GbE LAN with cFosSpeed Internet Accelerator Software
ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
Sound BlasterX 720°, the Top-of-the-line Audio Engine Solution for 4K Gaming and Entertainment
Intel^® Dual Band 802.11ac + Bluetooth 4.2 – AC 8265 WiFi Module
RGB FUSION 2.0 with Multi-Zone LED Light Show design, support Digital LED & RGB LED strips
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface and Thermal Guard
USB DAC-UP 2 with Adjustable Voltage
Precise Digital USB Fuse Design for Stronger Protection
Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
Base Plated & I/O Shield Armor
APP Center Including EasyTune™ and Cloud Station™ Utilities

CPU
SocketTR4:
1. AMD Ryzen™ Threadripper™ processor
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD X399
Memory
1. 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
2. Quad channel memory architecture
3. Support for DDR4 3600+*(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933(O.C.)/ 2667/ 2400/ 2133 MHz memory modules
  * Recommend to use a 1^st Gen. Ryzen™ Threadripper™ processor to achieve 3600MHz (O.C.) speed.
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Audio
1. Realtek^® ALC1220 codec
2. Support for Sound BlasterX 720°
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out
LAN
1. 2 x Intel^® GbE LAN chips (10/100/1000 Mbit)
Wireless Communication module
1. Intel^® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
3. Support for 11ac wireless standard and up to 867 Mbps data rate
  * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
  (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  (The PCIEX4 slot conforms to PCI Express 2.0 standard.)
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
2. Support for NVIDIA^® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA^® SLI™ technologies
Storage Interface
1. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)(M2Q_32G)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
3. 8 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
1. 8 x USB 3.1 Gen 1 ports on the back panel
Chipset:
1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
3. 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
4. 2 x USB 3.1 Gen 1 ports available through the internal USB header
5. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 1 x digital LED strip header
9. 1 x digital LED strip power select jumper
10. 2 x RGB (RGBW) LED strip headerss
11. 3 x M.2 Socket 3 connectors
12. 8 x SATA 6Gb/s connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x S/PDIF Out header
16. 1 x USB Type-C™ header with USB 3.1 Gen 1 support
17. 1 x USB 3.1 Gen 1 header
18. 2 x USB 2.0/1.1 headers
19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
20. 1 x power button
21. 1 x reset button
22. 1 x Clear CMOS button
23. 2 x temperature sensor headers
24. 1 x Clear CMOS jumper

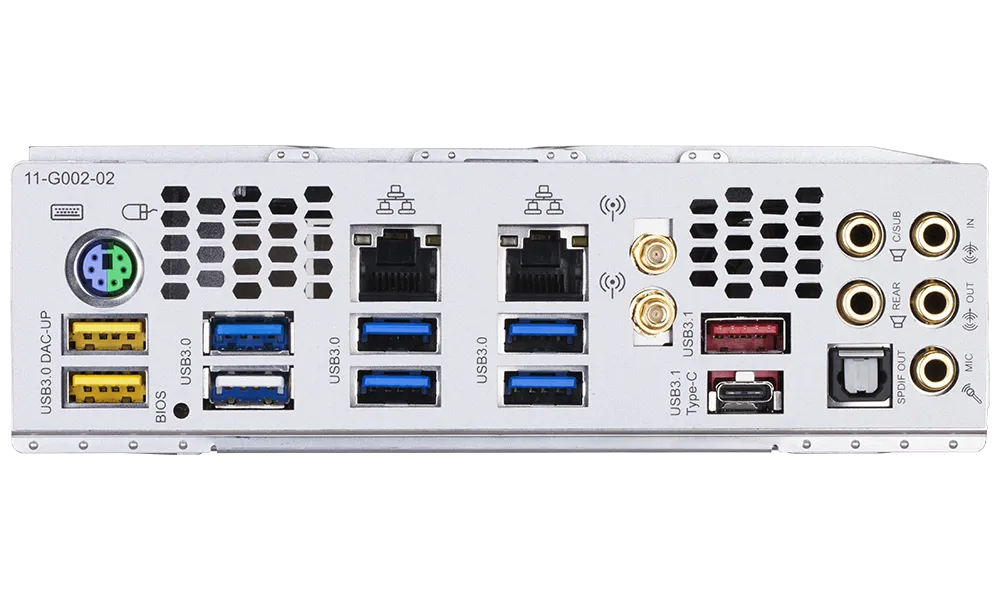

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
3. 1 x USB 3.1 Gen 2 Type-A port (red)
4. 8 x USB 3.1 Gen 1 ports
5. 2 x RJ-45 ports
6. 2 x MMCX antenna connectors (2T2R)
7. 1 x optical S/PDIF Out connector
8. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. Support for Q-Flash Plus
  * The USB flash drive used must be a USB 2.0 flash drive.
5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  BIOS Setup
  Color Temperature
  Cloud Station
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  Smart HUD
  System Information Viewer
  USB Blocker
  USB DAC-UP 2
  V-Tuner
2. Support for Q-Flash
3. Support for Xpress Install
Bundle Software
1. Norton^® Internet Security (OEM version)
2. XSplit Gamecaster + Broadcaster (12 months license)
3. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
